# Instrumentation Process Data Sheet (IPDS), Instrument Count & Technology Selection Guide: Pharma API & Chemical Plant Engineering

# Executive Summary & The Process-to-Automation Interface

In chemical process industries (CPI) and Active Pharmaceutical Ingredient (API) manufacturing, the Instrumentation Process Data Sheet (IPDS)—also called the Process Instrument Data Sheet (PIDS)—is the primary technical contract bridging Chemical Process Engineering and Instrumentation & Control (I&C) engineering.

Process engineers establish the chemical synthesis pathways, thermodynamic envelopes, fluid phase behavior, corrosivity, and safety barriers. In turn, I&C engineers rely directly on the IPDS to determine the instrument count, select the optimal measurement and actuation technologies, size control valves and relief devices, configure distributed control system (DCS) I/O racks, and procure field devices.

Industrial commissioning audits indicate that over 40% of plant commissioning delays, valve cavitation damage, measurement drift, and batch runaway incidents result from inaccurate or incomplete Process Data Sheets and improper instrument selection. Common pitfalls include neglecting non-conductive solvent chemistry when specifying flowmeters, omitting clean-in-place (CIP) / steam-in-place (SIP) thermal shocks on diaphragm seals, miscalculating thermowell wake vibration frequencies, and failing to define fail-safe valve states under instrument air failure.

This master guide provides a comprehensive methodology for:

1. Establishing the Master Instrument Count Schedule (Instrument Index / MIL) directly from Process Flow Diagrams (PFD) and P&IDs.
2. Systematically selecting transducer technologies for Flow, Level, Temperature, Pressure, and Control Valves using industry decision matrices.
3. Formulating robust Instrumentation Process Data Sheets with verified process envelopes.
4. Analyzing an industrial case study: a 5,000 L Multi-Purpose API Synthesis Batch Reactor (R-101) complete with P&ID architecture, ISA 5.1 tag schedules, worked data sheets, and SIL-2 safety interlocks.

# 1. Process Data Sheet (PDS) vs. Instrument Specification Sheet (ISS)

A frequent source of scope friction in engineering, procurement, and construction (EPC) workflows is distinguishing between a Process Data Sheet (PDS) and an Instrument Specification Sheet (ISS):

Process Chemistry & Kinetics ──► Mass & Energy Balance ──► P&ID Development (ISA 5.1) ──► Master Instrument Count ──► Technology Selection & IPDS ──► Valve/Sensor Sizing ──► ISS Procurement Datasheet

# 2. How to Build the Master Instrument Count & Schedule

The Master Instrument List (MIL)—also known as the Instrument Index—is the primary inventory of all measurement, control, and safety devices in a process plant.

# The Systematic Counting Workflow from P&ID

To avoid missing critical field tags, Process Engineers apply a structured Node-by-Node Tracing Methodology:

P&ID Boundary ──► Feed Inlets ──► Vessel Body ──► Utility Jacket ──► Overhead Vents ──► Bottom Discharge ──► Safety Interlocks (SIS)

1. Feed & Dosing Lines: Every continuous or batch reagent line requires flow measurement (FT), flow control (FCV), isolation (XV/HV), and non-return check valving.
2. Vessel Body Monitoring: Requires primary and secondary temperature elements (TT), headspace pressure (PT), continuous level (LT), independent high-high level alarm switch (LSHH), and gravimetric weighing load cells (WE).
3. Agitator System: Requires shaft rotational speed monitoring (ST), motor current/power torque sensor (IT), and zero-speed safety interlock (ZS).
4. Thermal Jacket & Utility Manifolds: Sized based on the utility switching philosophy (e.g., 3-utility split range: Steam/HTF valve + Cooling Water valve + Chilled Brine valve + jacket inlet/outlet RTDs).
5. Overhead Vapor & Vent Systems: Requires condenser inlet/outlet RTDs, vent pressure control (PCV), nitrogen blanketing regulator (PCV), and off-gas oxygen analyzer (AT).
6. Safety Instrumented Systems (SIS / LOPA): Every independent protection layer (IPL) identified in HAZOP/LOPA requires dedicated, segregated sensor elements and emergency shut-off valves (XV).

# Standard Plant Multipliers & Rules of Thumb for FEED Stage Counting

During the conceptual and Front-End Engineering Design (FEED) stage when detailed P&IDs are still in progress, Process Leads use established industry multipliers to estimate instrument counts and size DCS I/O cabinets:

# DCS / Safety PLC I/O Signal Allocation & The 20% Spare Margin Rule

Every field instrument maps into one of five standard automation I/O categories:

• Analog Input (AI): Continuous 4–20 mA HART signals (e.g., PT, TT, FT, LT, IT, AT).
• Analog Output (AO): Continuous 4–20 mA modulating signals to valve positioners (e.g., TCV, FCV, PCV, LCV).
• Digital Input (DI): Discrete 24 VDC dry contacts / NAMUR proximity switches (e.g., valve limit switches ZSO/ZSC, motor run feedback, burst disc sensors PSE).
• Digital Output (DO): Discrete 24 VDC commands energizing solenoid valves (SOV) or motor start/stop relays (e.g., XV emergency valves, pump starters).
• Safety I/O (SIL): Segregated, fail-safe channels connected directly to a dedicated Safety Instrumented System (SIS) controller.

# 3. Master Instrument Technology Selection Framework

# A. Flowmeter Selection Matrix for Chemical & Pharma API Plants

# B. Continuous Level Measurement Selection Matrix

# C. Temperature Sensor & Thermowell Selection

# D. Control Valve Style, Trim & Actuation Selection

1. Body Style Selection:
   • Globe Style (Top-Guided / Cage-Guided): Industry workhorse for clean thermal fluids, cooling water, and general solvents. Offers exceptional throttling precision and tight shut-off (ANSI Class IV / VI).
   • Segmented V-Notch Ball Valve: Best for slurries, high throughput, and high-capacity utilities with non-clogging shear action.
   • Sanitary Weir Diaphragm Valve: Mandatory for Purified Water, WFI, and sterile pharmaceutical processing (zero dead leg, electropolished Ra ≤ 0.38 micron).
2. Inherent Flow Characteristic Selection:
   • Equal Percentage (=%): Sized for heat exchangers and reactor jackets where process gain drops with load; provides linear overall loop response.
   • Linear (Lin): Sized for constant pressure-drop liquid dosing and liquid-level control.
   • Quick Opening (QO): Sized for emergency blowdown, on/off isolation, and safety dumping.
3. Severe Service & Anti-Cavitation Trim:
   • When the Cavitation Index (sigma < 1.7), specify multi-stage tortuous path trims (e.g., Cavitrol, Multi-Z) to step down pressure gradually without dropping below liquid vapor pressure (Pv).
4. Fugitive Emissions & Stem Sealing:
   • For toxic, carcinogenic, or volatile reagents (OEB 4/5), mandate welded Hastelloy or Inconel Bellows Seal Bonnets compliant with ISO 15848-1 Class A tightness.

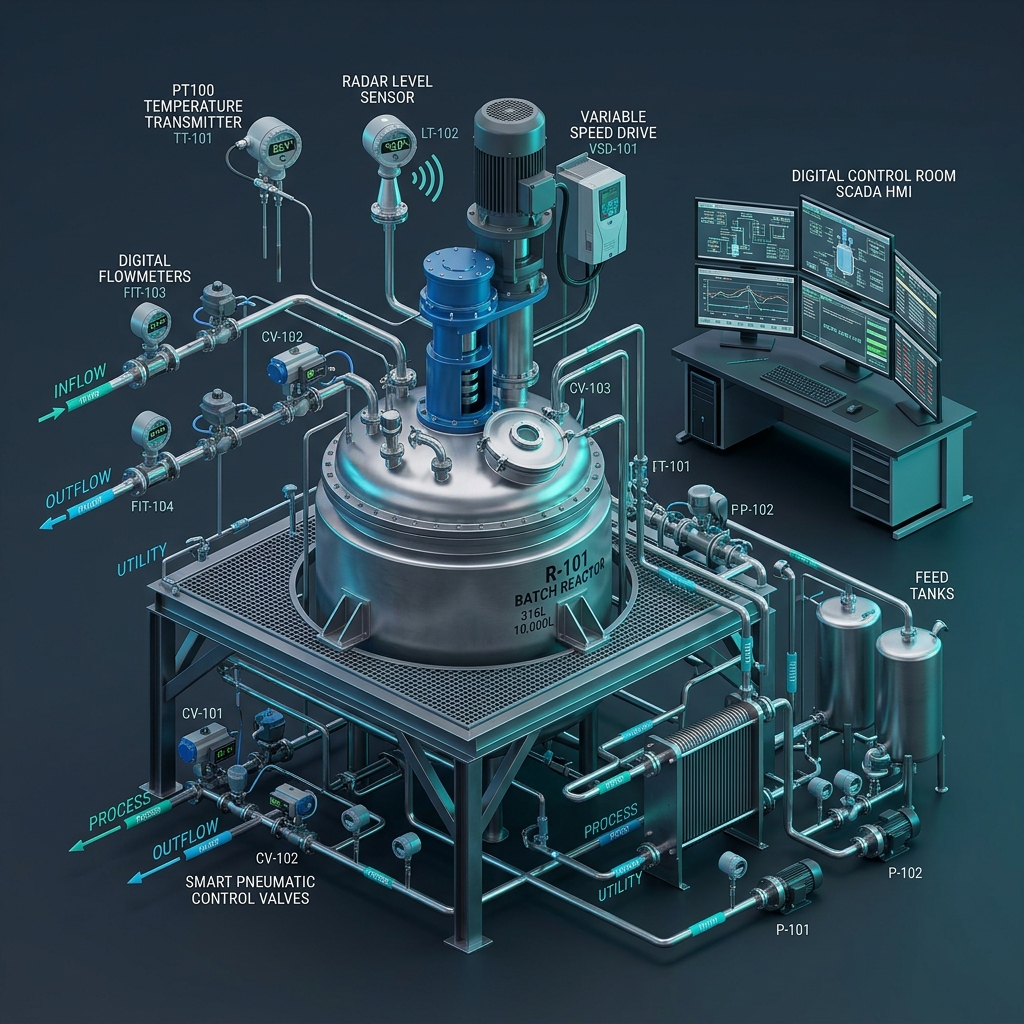

# 4. Case Study: 5,000 L API Batch Reactor (R-101) P&ID Architecture

To illustrate the complete instrument count and data sheet development, consider a 5,000 L Hastelloy C-22 Multi-Purpose API Synthesis Reactor (R-101) executing an exothermic amidation and crystallization process:

                              [ PCV-103A (N2 Supply) ]
                                        │
                                        ▼

[ FT-105 / FCV-105 ] ──► [ Top Head Nozzle ] ──► [ Off-Gas PCV-103B ] ──► [ Condenser ]
(Reagent Feed) │ │
▼ ▼
[ 5,000 L Reactor R-101 ] [ Rupture Disc PSE-104 ]
[ Agitator ST/IT-107 ] [ Safety Valve PSV-104 ]
[ Level Radar LT-106 ]
[ Pressure Trans PT-103 ]
│
┌───────────────┴───────────────┐
│ Multi-Utility Jacket │
│ TCV-102A: Hot Thermal Fluid │
│ TCV-102B: Cooling Tower Water│
│ TCV-102C: Chilled Glycol │
└───────────────┬───────────────┘
▼
[ Bottom Outlet TT-101 ]

# Master Instrument Count & I/O Schedule (ISA 5.1 Tagging)

The complete instrument count for Reactor R-101 comprises 24 field instrument tags, mapped systematically into DCS and Safety PLC I/O racks:

# Summary I/O Count for Reactor R-101 Rack:

• Analog Inputs (AI): 8 channels
• Analog Outputs (AO): 5 channels
• Digital Inputs (DI): 2 channels
• Digital Outputs (DO): 1 channel
• Safety I/O (SIL-2): 3 channels (2 Safety AI + 1 Safety DO)
• Total Physical I/O Channels: 19 channels + 4 Spare Channels (20% Spare Rule) = 23 I/O Channels Total.

# 5. Three Complete Worked Instrumentation Process Data Sheets

# Worked IPDS #1: Coriolis Mass Flow Meter (FT-105)

====================================================================================================
                        PHARMACHEMENG HUB - PROCESS DATA SHEET
                                 FLOW INSTRUMENTATION
====================================================================================================
1. GENERAL INFORMATION
   Plant Name          : API Active Synthesis Facility         Date / Rev      : 2026-08-13 / Rev 0
   Unit / Area         : Area 200 (Multi-Purpose Synthesis)    P&ID Ref        : 02-PID-R101-01
   Tag Number          : FT-105                                Line Number     : 02-PL-1105-25-HC22
   Service Description : Corrosive Acid Chloride / Organometallic Dosing to Reactor R-101
   Safety Criticality  : SIL-2 Safety Loop Component           P&ID Node       : Node 02 (Feed Line)

2. PROCESS FLUID CONDITIONS & THERMOPHYSICAL PROPERTIES
   Fluid Description   : Thionyl Chloride (SOCl2) 30 wt% in Dichloromethane (CH2Cl2)
   Fluid State         : Liquid (Single-Phase, Non-Conductive, Flammable, Highly Corrosive to SS)
   Operating Envelopes :
     Parameter                     Minimum             Normal              Maximum             Design
     -----------------------------------------------------------------------------------------------
     Mass Flow Rate (kg/h)         50.0                450.0               950.0               1,200.0
     Volumetric Flow (m³/h)        0.040               0.345               0.740               0.950
     Operating Temperature (C)     +5.0                +20.0               +35.0               +60.0
     Operating Pressure (barg)     1.50                2.80                4.20                10.0
     Operating Density (kg/m³)     1,310               1,285               1,260               -
     Dynamic Viscosity (cP)        0.65                0.48                0.38                -
     Vapor Pressure @ Top (bara)   0.25                0.58                1.15                -

3. SIZING & MEASUREMENT PERFORMANCE CRITERIA
   Calibrated Flow Range : 0.0 to 1,000.0 kg/h
   Required Measuring Range : 50.0 to 950.0 kg/h (Turndown Ratio = 19:1)
   Max Permissible Pressure Drop (delta-P_allow) : 0.40 bar @ 950 kg/h (Fluid must remain below flash point)
   Process Accuracy Requirement : +/- 0.10% of Actual Mass Rate (Required for exact stoichiometry)
   Zero Stability Requirement : <= 0.05 kg/h (Crucial for low-flow trickling feed control)
   Process Fluid Conductivity : < 0.01 micro-S/cm (Magnetic Flowmeter ruled out; Coriolis mandatory)

4. MECHANICAL, SANITARY & WETTED METALLURGY
   Line Size / Schedule : DN25 (1-inch) / Schedule 40S
   Process Connections  : ASME B16.5 1-inch Class 150 Raised Face (RF) Flanges
   Wetted Parts MOC     : Hastelloy C-22 (UNS N06022) / Alloy C-22 Sensor Tubes
   Sensor Tube Geometry : Dual Bent / Curved Tube (High natural frequency, immune to plant vibration)
   Secondary Containment: Stainless Steel 304 Housing rated for 25 barg rupture containment
   Purge Fitting        : Required (1/2" NPT with rupture burst disc on sensor casing)

5. HAZARDOUS AREA & ELECTRICAL ENCLOSURE
   Area Classification  : ATEX Zone 1 / IECEx Zone 1 / Class I, Div 1
   Gas Group & Temp Cls : Group IIB+H2 / Temp Class T4 (< 135 Celsius surface)
   Ingress Protection   : IP67 / NEMA 4X Stainless Steel Electronics Housing
   Output Requirements  : 4-20 mA HART (Active Mass Flow) + Frequency/Pulse (Batch Dosing Totalizer)
====================================================================================================

# Worked IPDS #2: Jacketed Multi-Utility Control Valve (TCV-102A)

====================================================================================================
                        PHARMACHEMENG HUB - PROCESS DATA SHEET
                                 CONTROL VALVES
====================================================================================================
1. GENERAL INFORMATION
   Plant Name          : API Active Synthesis Facility         Date / Rev      : 2026-08-13 / Rev 0
   Unit / Area         : Area 200 (Reactor R-101 Jacket)       P&ID Ref        : 02-PID-R101-02
   Tag Number          : TCV-102A                              Line Number     : 02-UT-2101-50-CS
   Service Description : Hot Heat Transfer Fluid (HTF) Modulation for Reactor Heating
   Control Strategy    : Split-Range Cascade Slave (17.0 mA to 20.0 mA Span)

2. PROCESS FLUID & OPERATING CONDITIONS
   Fluid Name          : Synthetic Thermal Fluid (Therminol 66 / Dowtherm A)
   Physical State      : Incompressible Liquid (Hot Oil)
   Corrosive Agents    : None (Organic HTF, non-corrosive, anhydrous)
   Operating Envelopes :
     Parameter                     Minimum             Normal              Maximum             Design
     -----------------------------------------------------------------------------------------------
     Volumetric Flow (m³/h)        1.20                8.50                16.80               22.0
     Inlet Temperature T1 (C)      +140.0              +140.0              +140.0              +200.0
     Inlet Pressure P1 (barg)      4.50                4.20                3.80                10.0
     Outlet Pressure P2 (barg)     3.80                2.70                1.50                0.0
     Pressure Drop delta-P (bar)   0.70                1.50                2.30                -
     Fluid Density @ T1 (kg/m³)    940                 940                 940                 -
     Dynamic Viscosity @ T1 (cP)   1.85                1.85                1.85                -
     Vapor Pressure Pv @ T1 (bara) 0.02                0.02                0.02                -

3. VALVE SIZING CALCULATIONS (ISA 75.01 / IEC 60534)
   Calculated Cv (Norm) : Cv = 1.156 x 8.50 x sqrt(0.94 / 1.50) = 7.77 US gpm/psi^0.5
   Calculated Cv (Max)  : Cv = 1.156 x 16.80 x sqrt(0.94 / 2.30) = 12.43 US gpm/psi^0.5
   Selected Rated Cv    : 18.0 US gpm/psi^0.5 (Provides 30% safety margin at maximum load)
   Flow Characteristic  : Equal Percentage (=%) to linearize heat transfer thermal response
   Cavitation Index (sigma) : sigma = (P1 - Pv) / (P1 - P2) = (5.2 - 0.02) / 2.3 = 2.25 (No Cavitation Risk)

4. MECHANICAL & MATERIAL SPECIFICATIONS
   Nominal Valve Size   : DN40 (1.5-inch) flanged body on DN50 (2-inch) utility supply line
   Body Style           : Single-Port Top-Guided Globe Valve with Streamlined Flow Contouring
   Body Material        : Cast Carbon Steel ASTM A216 WCB / ASTM A352 LCC
   Trim Material        : SS316 + Stellite Hard-Faced Seat & Plug (Resistant to thermal erosion)
   Stem Sealing System  : Double Live-Loaded PTFE V-Rings with Carbon Bushing (High Temp Pack)
   Bonnet Style         : Extended / Radiation Fin Finned Bonnet (Protects actuator from 140 Celsius heat)
   Leakage Class        : ANSI / FCI 70-2 Class IV (Metal-to-Metal tight shutoff)

5. ACTUATOR & FAIL-SAFE LOGIC
   Actuator Type        : Pneumatic Diaphragm with Multi-Spring Return (Direct Action)
   Fail-Safe Action     : FAIL CLOSED (FC) / Air-to-Open (ATO) (Prevents reactor runaway heating)
   Bench Set Spring     : 0.8 to 2.4 barg calibrated spring range
   Positioner Type      : Smart Electro-Pneumatic (4-20mA HART) configured for 17 - 20 mA input span
====================================================================================================

# Worked IPDS #3: Flush Diaphragm Sanitary Pressure Transmitter (PT-103)

====================================================================================================
                        PHARMACHEMENG HUB - PROCESS DATA SHEET
                                 PRESSURE INSTRUMENTATION
====================================================================================================
1. GENERAL INFORMATION
   Plant Name          : API Active Synthesis Facility         Date / Rev      : 2026-08-13 / Rev 0
   Unit / Area         : Area 200 (Reactor R-101 Headspace)    P&ID Ref        : 02-PID-R101-01
   Tag Number          : PT-103                                Nozzle Ref      : N3 (Top Head Flange)
   Service Description : Reactor Headspace Vacuum Degassing & Nitrogen Blanketing Pressure
   Safety Criticality  : High-High Pressure Interlock (PSHH-103 @ 3.5 barg)

2. PROCESS FLUID & OPERATING ENVELOPE
   Vessel Headspace Gas: Dichloromethane, Nitrogen (N2), gaseous SO2, gaseous HCl traces
   Corrosive Species   : Wet acid vapors (HCl/SO2) will rapidly pit SS316L; Tantalum required.
   Operating Envelopes :
     Parameter                     Minimum             Normal              Maximum             Design
     -----------------------------------------------------------------------------------------------
     Operating Pressure            10 mbar abs         +30 mbarg           +2.50 barg          -1 to +6.0 barg
     Operating Temperature (C)     -20.0               +25.0               +110.0              +150.0
     CIP / SIP Temperature (C)     -                   +121.0 (Steam)      +134.0 (Autoclave)  -
     Ambient Temperature (C)       -10.0               +25.0               +45.0               -

3. SIZING & MEASUREMENT PERFORMANCE CRITERIA
   Calibrated Span     : -1.000 barg (-100.0 kPa) to +4.000 barg (+400.0 kPa) [Compound Range]
   Required Accuracy   : +/- 0.065% of Calibrated Span (Ensures precise blanketing at +30 mbarg)
   Overpressure Limit  : Transmitter body proof pressure >= 10.0 barg without zero shift
   Response Time (t90) : <= 80 ms (Fast dynamic sensing required for deflagration venting detection)

4. MECHANICAL, SANITARY & SEAL SELECTION
   Process Connection  : DN50 (2-inch) ASME BPE Sanitary Tri-Clamp / DIN 11864-3 Aseptic Flange
   Diaphragm Style     : Extended Flush Diaphragm (Zero Dead-Leg, no cavity for product accumulation)
   Diaphragm Wetted MOC: Tantalum Sheet Clad on SS316L Base (Immune to boiling concentrated HCl/SO2)
   Seal Fill Fluid     : High-Purity Food Grade / USP Class VI Silicone Oil (Neobee M-20)
   Thermal Zero Shift  : <= 0.02% URL per 10 Celsius temperature change (Laser-welded diaphragm capsule)

5. HAZARDOUS AREA & ELECTRICAL ENCLOSURE
   Area Classification : Zone 0 (Inside Vessel Headspace) / Zone 1 (External Ambient Room)
   Protection Concept  : Intrinsic Safety Ex ia IIC T4/T6 Ga/Gb (Galvanically Isolated Barrier)
   Housing Enclosure   : Stainless Steel 316L Dual-Compartment Housing (IP68, NEMA 6P)
   Communication       : 2-Wire 4-20 mA HART 7 Protocol with localized backlit LCD indicator
====================================================================================================

# 6. Key Engineering Formulas & Sizing Calculations for IPDS

When compiling an IPDS, the Process Engineer must execute governing thermodynamic and hydraulic calculations to establish verifiable process boundaries:

# 1. Liquid Control Valve Flow Coefficient (Cv) & Sizing

Per ISA-75.01.01 / IEC 60534 standards, the non-choked volumetric flow coefficient for incompressible liquids is:

Cv = 1.156 x Q x sqrt(SG / delta-P)

Where:

• Q: Volumetric flow rate (m³/h)
• SG: Specific gravity of process fluid relative to water at 15.6 Celsius (rho / 1000)
• delta-P: Sizing pressure drop across valve (P1 - P2, in bar)
• 1.156: Metric conversion constant (Cv in US gpm/psi^0.5)

# 2. Cavitation & Flashing Verification Index

Before completing the IPDS for any high-pressure drop or subcooled solvent valve, calculate the Cavitation Index (sigma):

sigma = (P1 - Pv) / (P1 - P2)

Where:

• P1: Upstream absolute pressure (bar abs)
• P2: Downstream absolute pressure (bar abs)
• Pv: Fluid saturation vapor pressure at inlet temperature (bar abs)

# 3. Diaphragm Seal Capillary Hydrostatic Head Correction

When remote diaphragm seals with capillary tubes are specified on vacuum batch reactors, the static liquid head of the fill fluid exerts a continuous baseline pressure offset on the sensor capsule:

delta-P_head = rho_fill x g x h

Where:

• rho_fill: Density of capillary fill fluid (e.g., 960 kg/m³ for silicone oil)
• g: Gravitational acceleration (9.81 m/s²)
• h: Vertical elevation difference between the vessel nozzle and transmitter cell body (m)

# 4. Thermowell Wake Frequency & Resonance Sizing (ASME PTC 19.3 TW-2016)

In agitated vessels, fluid cross-flow velocities generated by turbine impellers shed von Karman vortex streets across the thermowell stem. If the vortex shedding frequency (fs) approaches the thermowell natural frequency (fn), fatigue fracture occurs:

fs = (St x v) / d_tip <= 0.80 x fn

Where:

• St: Strouhal number (typically 0.22 for cylindrical thermowells)
• v: Maximum impeller cross-flow liquid velocity (m/s)
• d_tip: Thermowell tip outside diameter (m)
• fn: Thermowell fundamental natural resonance frequency (Hz)

# 7. Six Critical Engineering Pitfalls in Pharma API Operations

# Pitfall 1: Diaphragm Seal Thermal Shock & Zero Drift during CIP/SIP

• Problem: Process vessels operating at 20 Celsius undergo Clean-In-Place (CIP) hot caustic washing at 85 Celsius followed by Steam-In-Place (SIP) sterilization at 121 Celsius (2.0 bar steam). Standard pressure transmitters experience rapid thermal expansion of the oil fill, warping the thin diaphragm (0.05 mm) and inducing a permanent 50 to 200 mbar zero calibration error.
• Engineering Mitigation: Specify welded, low-volume capillary diaphragm seals with temperature-compensated oil matching and laser-profiled convolutions. Incorporate software-based DCS "zero re-calibration tare" routines prior to each batch run.

# Pitfall 2: Bellows Seal vs. Live-Loaded Packing for Toxic/Carcinogenic Reagents

• Problem: In API synthesis handling thionyl chloride, phosgene derivatives, dimethyl sulfate, or alkyl halides (Occupational Exposure Band OEB 4/5, exposure limit < 1 micro-g/m³), standard PTFE stem packings inevitably leak after 5,000 cycles due to thermal cycling.
• Engineering Mitigation: The IPDS must mandate welded Hastelloy or Inconel Bellows Seal Bonnets tested to ISO 15848-1 Class A tightness (< 10^-6 mg/s·m helium leakage), equipped with a secondary live-loaded backup packing and an intermediate sniffer port with pressure switch detection.

# Pitfall 3: Subcooled Cavitation in Cryogenic Brine Cooling Valves

• Problem: In -20 Celsius glycol/brine cooling lines, control valves throttled near closed positions experience severe localized pressure drops below fluid vapor pressure, generating cavitation bubbles that collapse violently against the valve seat.
• Engineering Mitigation: Calculate the Cavitation Index sigma. If sigma < 1.7, specify an anti-cavitation cage trim with multi-hole radial tortuous pathways (e.g., Fisher Cavitrol or Flowserve Multi-Z) to break the single pressure drop into multiple benign stages.

# Pitfall 4: Thermowell Measurement Lag in Glass-Lined Reactors

• Problem: Glass lining on a carbon steel thermowell introduces a heavy thermal resistance (k_glass approx 1.0 W/m·K compared to k_Hastelloy approx 11 W/m·K), causing temperature measurement time lags of 30 to 60 seconds. In exothermic batch additions, this delay leads to severe controller overshoot (5 to 15 Celsius), generating thermal impurities.
• Engineering Mitigation: Specify a tantalum-tip fast-response thermowell or a resistance temperature detector embedded directly in a bottom outlet valve plug (flush with the liquid mass). In DCS programming, implement derivative action filtering and feed-forward model-predictive control (MPC).

# Pitfall 5: Sanitary Dead-Leg Violations in Sampling and Level Nozzles

• Problem: Conventional flanged nozzle standpipes create stagnant dead pockets where organic solvents and residues accumulate, degrading product purity and violating ASME BPE sanitary criteria (L/D > 2).
• Engineering Mitigation: Mandate flush-mount sanitary diaphragm seals (ASME BPE Tri-Clamp or Ingold ports) where the sensing diaphragm sits perfectly flush with the vessel interior wall (L/D = 0).

# Pitfall 6: Sizing Coriolis Flowmeters on Line Size Rather Than Dynamic Range

• Problem: Sizing a Coriolis flowmeter to match a 2-inch pipe size results in fluid operating at sub-optimal velocities (< 0.3 m/s), operating dangerously near the meter's zero-stability floor where mass measurement accuracy degrades from +/- 0.1% to worse than +/- 2.0%.
• Engineering Mitigation: Always size Coriolis meters based on mass flow velocity (2.0 to 4.5 m/s) and pressure drop constraints, typically selecting a 1-inch or 3/4-inch meter with eccentric pipe reducers.

# 8. Process Engineering Handover Checklist

[ ] 1. Master Instrument Schedule checked: every P&ID tag is accounted for with assigned I/O type.
[ ] 2. 20% installed spare I/O channels reserved across all DCS and safety marshaling racks.
[ ] 3. Three distinct operating envelopes (Min, Norm, Max) documented with valid density and viscosity values.
[ ] 4. Fluid vapor pressure (Pv) stated at maximum operating temperature for all pump suction and control valve loops.
[ ] 5. Chemical trace species identified (chlorides, free halogens, wet acids, peroxides) for wetted metallurgy selection.
[ ] 6. Slurry solid % wt, crystal hardness (Mohs scale), and particle size distribution (d50, d90) specified if present.
[ ] 7. Clean-in-Place (CIP) and Steam-in-Place (SIP) thermal conditions and chemical concentrations recorded.
[ ] 8. Control valve fail-safe state (Fail Closed / Fail Open / Fail in Place) evaluated against HAZOP runaway scenarios.
[ ] 9. Safety Instrumented Functions (SIFs) tagged with required SIL targets (SIL-1 / SIL-2) per LOPA report.
[ ] 10. Valve sizing checked for non-choked flow, cavitation index (sigma > 1.7), and valve authority (N >= 0.35).

# Summary & Key Takeaways

The Instrumentation Process Data Sheet is not a clerical form—it is a critical chemical engineering deliverable that translates thermodynamics, reaction kinetics, fluid mechanics, and plant safety into physical instrumentation.

By ensuring that every IPDS incorporates:

1. Systematic, verified instrument counts and I/O scheduling with spare capacity,
2. Rigorous, decision-tree driven instrument technology selection for flow, level, temperature, and valves,
3. Complete three-point thermophysical process envelopes (Min, Norm, Max), and
4. Unambiguous fail-safe actions and SIL-rated safety interlocks,

Process Engineers can guarantee trouble-free scale-up, flawless plant commissioning, and uncompromised batch safety across modern chemical and pharmaceutical manufacturing operations.

# Applicable Engineering Standards & Codes Used

The engineering methodologies, design correlations, and safety criteria detailed in this article adhere to the following international standards and industry codes:

• US FDA 21 CFR Part 211: Current Good Manufacturing Practice for Finished Pharmaceuticals
• EU GMP Annex 1: Manufacture of Sterile Medicinal Products
• ISPE Baseline Pharmaceutical Engineering Guide (Vol 1-7: Bulk Active Pharmaceutical Ingredients, Water & Steam Systems): ISPE Baseline Pharmaceutical Engineering Guide (Vol 1-7: Bulk Active Pharmaceutical Ingredients, Water & Steam Systems)
• WHO Technical Report Series No. 961: Supplementary Guidelines on Good Manufacturing Practices for Heating, Ventilation and Air Conditioning
