# Pharmaceutical Cleanroom HVAC & Architecture: Pressure Cascades, Airlock Types (Cascade, Bubble, Sink, Double Compartment) & Containment Philosophy

# Engineering the Aerodynamic Envelope for Aseptic Integrity and Potent Containment

In pharmaceutical, biopharmaceutical, and Active Pharmaceutical Ingredient (API) manufacturing facilities, the Heating, Ventilation, and Air Conditioning (HVAC) system is not merely an environmental comfort system—it is a primary engineering barrier.

A properly designed cleanroom HVAC installation protects the pharmaceutical product from airborne viable and non-viable particulate contamination, shields operating personnel from potent or hazardous compounds (e.g., cytotoxic APIs, hormones, sensitizing beta-lactams), and prevents cross-contamination between adjacent manufacturing suites.

The core principle governing pharmaceutical cleanroom aerodynamics is:

Airflow direction and airborne particle transit are determined entirely by pressure differentials (ΔP). Controlling the pressure cascade across physical airlocks is the only reliable method to guarantee either absolute protection from outside ingress or absolute containment of internal hazards.

Below is a comprehensive engineering guide covering the regulatory basis, fluid dynamics of pressure gradients, and the four fundamental airlock topologies (Cascade, Bubble, Sink, Double-Compartment), complete with design calculations and selection criteria.

# 1. Regulatory Cleanroom Classification: ISO 14644 vs. EU GMP Annex 1

Pharmaceutical cleanrooms are classified based on airborne particulate concentrations under at-rest and in-operation states according to ISO 14644-1 and the revised EU GMP Annex 1 (2022):

# 2. The Physics of Differential Pressure (ΔP = 10 – 15 Pa Rule)

To prevent the backward migration of airborne particulates when doors are temporarily closed or transiently opened, international regulatory standards (EU GMP Annex 1, US FDA cGMP, WHO TRS 961) mandate:

# Fluid Dynamics of Infiltration across Door Gaps

The volumetric leakage rate ($Q$) through a closed door perimeter gap or orifice is governed by the standard Bernoulli orifice flow equation:

Where:

• Q = Air leakage flow rate (m³/s)
• C_d = Discharge coefficient of door crack (typically 0.60 – 0.65 for sharp-edged door frames)
• A_{crack} = Effective leakage area around door edges (m², typically 0.015 – 0.030 m² for unsealed doors, < 0.005 m² for drop-seal gasketed doors)
• ΔP = Differential pressure across the door boundary (Pa)
• ρ_{air} = Air density (1.20 kg/m³ at 20 °C)

At ΔP = 15 Pa, the resulting outward air velocity through the door crack is:

An outward sweeping air velocity of 5.0 m/s creates an aerodynamic kinetic energy barrier that stops airborne dust particles and microbial spores from diffusing against the pressure gradient.

# 3. The Four Core Airlock Topologies & Room Pressure Profiles

An Airlock is an enclosed buffer with two or more interlocked doors positioned between two distinct cleanroom zones. Its primary purpose is to control airflow direction during the transit of personnel or materials.

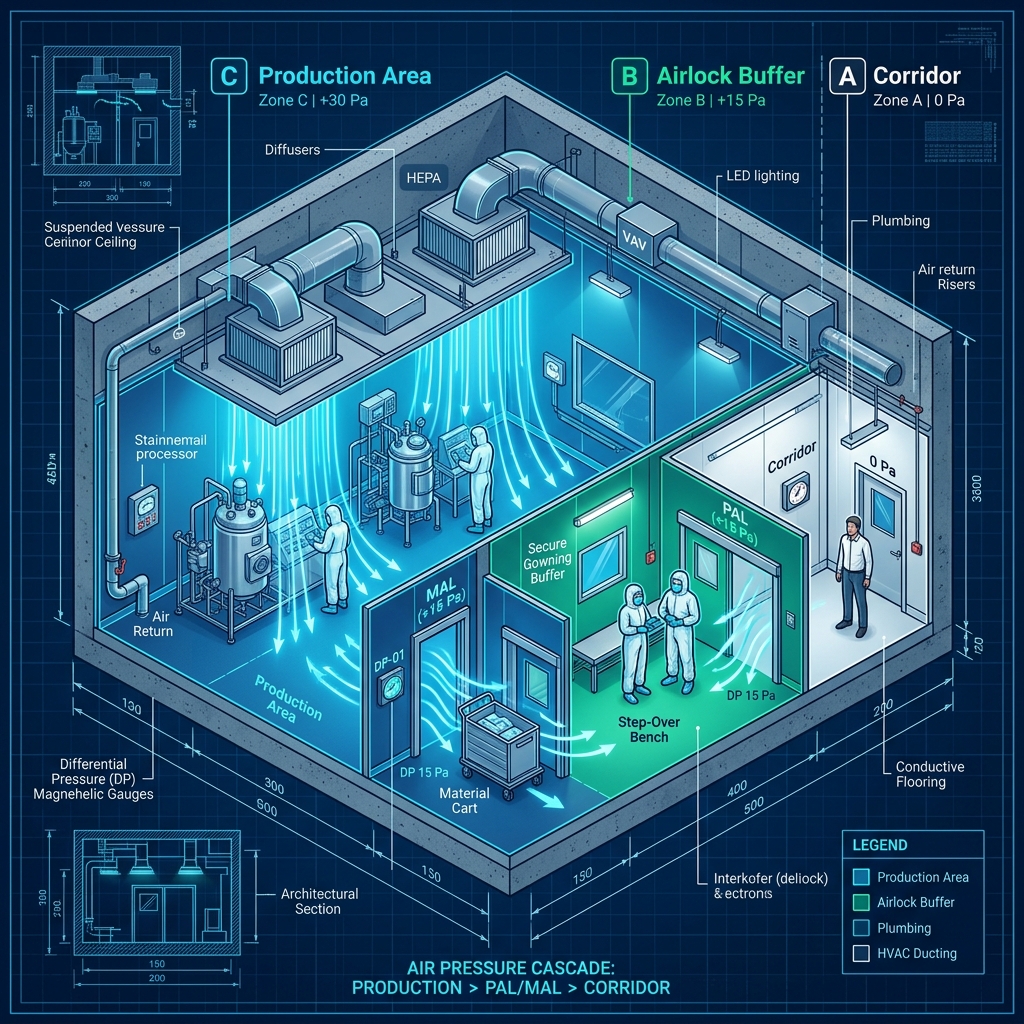

# A. The Cascade Airlock (Step-Down / Step-Up Pressure Hierarchy)

• Pressure Relationship:

• Airflow Pattern: High-pressure air in the cleanroom sweeps continuously outward into the airlock, and from the airlock outward into the corridor.
• Room Pressure Breakdown:
  • Production Cleanroom (Grade B): +++ (+30 Pa)
  • Cascade Airlock: ++ (+15 Pa)
  • Corridor (Grade D / CNC): + (0 Pa Reference)
  • Differential Pressure (ΔP): 15 Pa across each door

[ Production Area (+++ / +30 Pa) ] ──► [ Cascade Airlock (++ / +15 Pa) ] ──► [ Corridor (+ / 0 Pa) ]
(High Cleanliness Core ──► Intermediate Buffer ──► Lower Cleanliness Corridor / Continuous Outward Air Sweep)

Primary Application: Standard sterile formulation suites, aseptic filling lines, and positive-pressure clean manufacturing where the internal product is sterile and must be shielded from external particulate ingress.

# B. The Bubble Airlock (Over-Pressurized Buffer)

• Pressure Relationship:

• Airflow Pattern: The central airlock is maintained at a higher pressure than both adjacent rooms. Air blasts outward in both directions simultaneously when either door is opened.
• Room Pressure Breakdown:
  • Production Cleanroom A: ++ (+15 Pa)
  • Bubble Airlock (Center Core): +++ (+30 Pa - Highest Pressure)
  • Corridor / Cleanroom B: + or ++ (0 Pa or +15 Pa)
  • Differential Pressure (ΔP): 15 to 30 Pa across each boundary

[ Production Area (++ / +15 Pa) ] ◄── [ Bubble Airlock (+++ / +30 Pa) ] ──► [ Corridor (+ / 0 Pa) ]
(Overpressure cushion in the middle blasts outward simultaneously into both adjacent zones)

Primary Application: Facilities where the external corridor contains high particulate or microbial counts that must never enter the process room, while the process room contains sensitive operations that cannot tolerate cross-contamination from the corridor. The bubble acts as an impenetrable aerodynamic cushion.

# C. The Sink Airlock (Depressurized / Negative Pressure Trap)

• Pressure Relationship:

• Airflow Pattern: The central airlock is maintained at a lower pressure than both adjacent rooms. Air rushes inward from both the cleanroom and the corridor into the sink.
• Room Pressure Breakdown:
  • Potent API Production Room (OEB 4/5): ++ (+15 Pa)
  • Sink Airlock (Containment Trap): - or 0 (0 Pa / Lowest Pressure)
  • Clean Facility Corridor: +++ (+30 Pa / Highest Pressure)
  • Differential Pressure (ΔP): 15 to 30 Pa inward driving force

[ Potent Production Area (++ / +15 Pa) ] ──► [ Sink Airlock (- / 0 Pa) ] ◄── [ Clean Corridor (+++ / +30 Pa) ]
(Air rushes inward from both sides into the central sink / Containment Particle Trap)

Primary Application: Highly potent API synthesis suites, cytotoxic compounding, high-hazard chemical powder handling (OEB ≥ 4), and bio-containment facilities (BSL-3/4). The sink traps escaping powders or vapors inside the airlock, where dedicated exhaust fans route the air through Bag-In/Bag-Out (BIBO) safe-change HEPA H14 filters.

# D. Double-Compartment Airlocks (PAL & MAL Architecture)

In modern Grade A/B facilities, single-compartment airlocks are insufficient to bridge the gap between black/grey and aseptic white zones. Regulatory authorities mandate Double-Compartment Airlocks:

[ Production Core (++++ / +45 Pa) ] ──► [ Gown Stage 2 (+++ / +30 Pa) ] ──► [ Pre-Gown Stage 1 (++ / +15 Pa) ] ──► [ Corridor (+ / 0 Pa) ]

1. Personnel Airlocks (PAL):

   • Stage 1 (De-Gowning / Pre-Gown - Grey Zone, ++ / +15 Pa): Removal of factory shoes and street clothing; hand sanitization.
   • Physical Step-Over Bench (SOB): A physical barrier demarcating the boundary where operators pivot legs while donning sterile one-piece coveralls, sterile boots, hood, goggles, and double gloves.
   • Stage 2 (Sterile Gown Room - White Zone, +++ / +30 Pa): Positive pressure HEPA-filtered clean zone; air shower or dynamic downflow purge before entering Grade B background.

2. Material Airlocks (MAL):

   • Dynamic HEPA Purge Chamber: Equipped with high-velocity HEPA downflow nozzles (air shower) to strip surface particulates from raw material drums, packaging shippers, and stainless steel transfer carts.
   • Disinfection / Decontamination Airlocks: Utilizing Vaporized Hydrogen Peroxide (VHP) cycles or UV-C irradiation with integrated aeration cycles before material ingress into aseptic processing lines.

# 4. Electromagnetic Interlocking & Door Transit Dynamics

Opening an airlock door causes an instantaneous collapse of the static pressure differential (ΔP drops to near 0 Pa within 0.5 to 1.5 seconds).

# The Golden Rule of Cleanroom Airlock Operation:

No two doors in an airlock may ever be open simultaneously.

# Interlocking Hardware Requirements:

1. Electromagnetic Door Locks: Controlled via a central Programmable Logic Controller (PLC) or building Automation System (BAS).
2. Door Release Delay & Visual Status Indicators: Green LED indicates ready to enter; Red LED indicates opposing door is open or airlock is undergoing HEPA recovery purge.
3. Emergency Egress Override: Green emergency break-glass pushbuttons that instantaneously de-energize all electromagnetic locks in the event of a fire or facility evacuation alarm.

# 5. Air Changes Per Hour (ACPH) & The Cleanliness Recovery Test

While pressure cascades prevent cross-contamination across boundaries, cleanroom cleanliness within a room is achieved through dilution ventilation (for Grade B/C/D) or piston displacement (for Grade A).

# The Particle Decay Rate Equation:

The removal of airborne particulates following a contamination event is modeled by the first-order differential decay equation:

Where:

• C(t) = Airborne particle concentration at time $t$ (particles/m³)
• C_0 = Initial particle concentration following contamination spike
• N = Air Changes per Hour (ACPH, $\text{h}^{-1} = \frac{\text{Supply Flow Rate (m}^3\text{/h)}}{\text{Room Net Volume (m}^3\text{)}}$)
• ε = Ventilation mixing efficiency factor (typically 0.70 – 0.85 for ceiling supply diffusers with low-level wall return grilles)
• t = Elapsed recovery time (hours)

# The 15–20 Minute Cleanliness Recovery Test:

Per ISO 14644-3 and EU GMP Annex 1, cleanrooms must pass the Recovery Test:

• An intentional particulate challenge is generated inside the room (elevating particle count to $> 100\times$ the target class limit).
• The HVAC system must reduce particulate concentrations back down to the target class limit within 15 to 20 minutes under normal operating airflow.

# 6. Return Air Strategies: Recirculation vs. Once-Through (Single Pass)

# 7. Master Cleanroom Design & Airlock Selection Matrix

# Core Engineering Takeaway

Cleanroom HVAC design is an exact balance of thermodynamics, fluid mechanics, and regulatory compliance.

Maintaining strict pressure differentials is not an operational accident—it is the direct mathematical result of balancing supply air volumes, return air registers, extract exhaust rates, and door crack leakages.

By matching the correct airlock topology (Cascade for sterile protection, Sink for potent containment, Bubble for cross-contamination barriers, and Double-Compartment for compliant personnel/material entry), process engineers can build robust, contamination-free facilities that pass global regulatory audits on the very first inspection.

# Applicable Engineering Standards & Codes Used

The engineering methodologies, design correlations, and safety criteria detailed in this article adhere to the following international standards and industry codes:

• US FDA 21 CFR Part 211: Current Good Manufacturing Practice for Finished Pharmaceuticals
• EU GMP Annex 1: Manufacture of Sterile Medicinal Products
• ISPE Baseline Pharmaceutical Engineering Guide (Vol 1-7: Bulk Active Pharmaceutical Ingredients, Water & Steam Systems): ISPE Baseline Pharmaceutical Engineering Guide (Vol 1-7: Bulk Active Pharmaceutical Ingredients, Water & Steam Systems)
• WHO Technical Report Series No. 961: Supplementary Guidelines on Good Manufacturing Practices for Heating, Ventilation and Air Conditioning
