How to Write a Process Design Basis That Actually Gets Used

In the execution of greenfield pharmaceutical and chemical manufacturing projects, the Design Basis (DB) document is meant to be the project’s bible. It defines the boundaries, capacities, utility limits, operating envelopes, and regulatory constraints that guide every single piping isometric, vessel drawing, and valve selection.

Yet, in reality, many Design Basis documents are treated as mere paperwork—filed away in a digital cabinet once initial funding is approved. The consequence? Engineering designs proceed on loose assumptions, only to be completely dismantled and overridden during HAZOP (Hazard and Operability) studies.

Overriding key design parameters late in the project lifecycle results in extremely expensive engineering changes, piping re-runs, and equipment replacements. Research shows that establishing a locked, active Design Basis early in the cycle prevents 30% to 40% of all late-stage project rework.

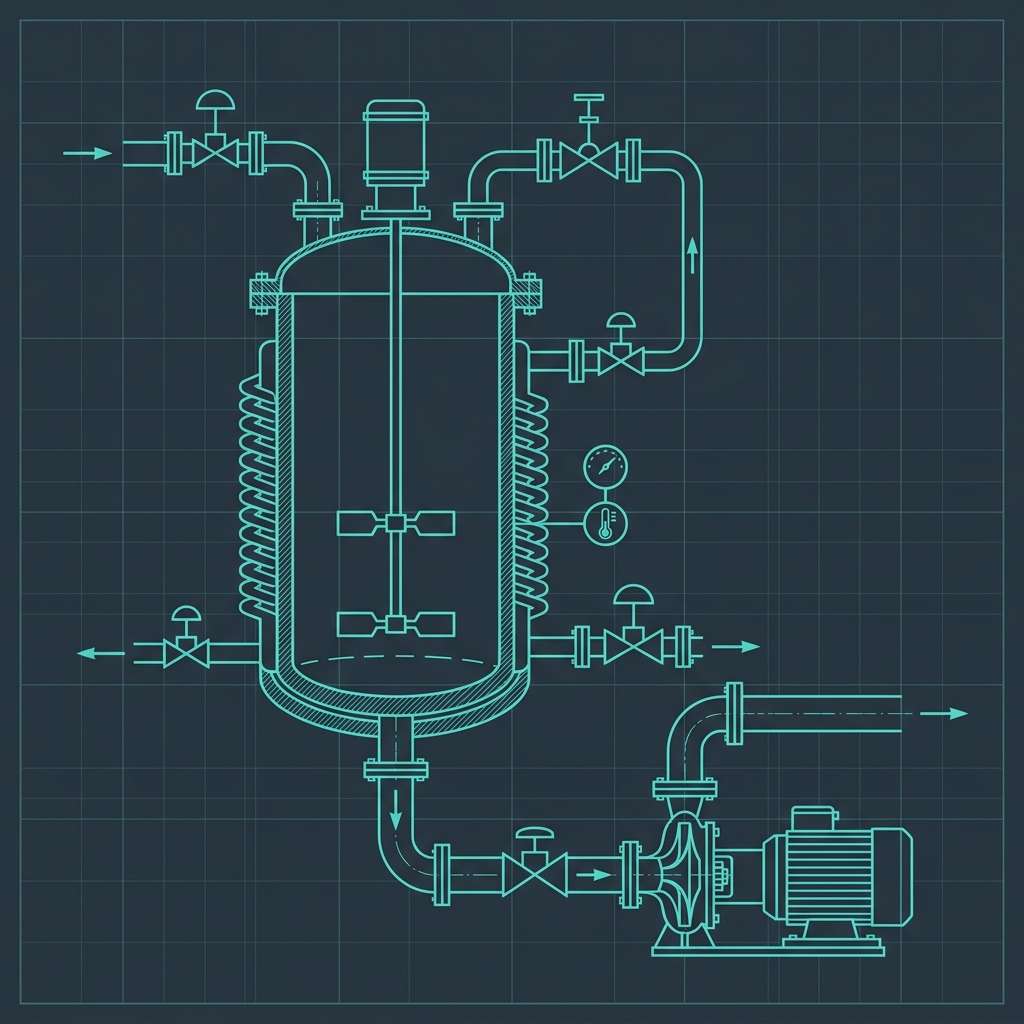

Download Technical Schematic

To assist in CAD editing and customization, you can directly download the vector drawing of the reactor design schematic here: 📥 Download Reactor Schematic (SVG CAD File)

1. The Anatomy of a Successful Design Basis

A Process Design Basis is not just a list of equipment sizes; it is a contract between the process engineering team, the client, and the equipment manufacturers. To be effective, it must capture four critical dimensions:

1.1. Regulatory and Compliance Criteria

Particularly in pharmaceutical greenfield projects, compliance with FDA, EMA, cGMP, and ASME BPE standards must be defined up front. This includes specifying:

Cleanliness levels (e.g., ISO cleanrooms class, sterile vs. non-sterile corridors).
Water system quality specifications (e.g., Purified Water loop velocity limits of 1.5 to 2.1 m/s to maintain turbulence and prevent biofilm).
Materials of construction (e.g., 316L Stainless Steel with Electropolishing to Ra <= 0.4 microns).

1.2. Production Capacity and Operating Windows

Clearly document the range of operations, not just the single nominal "design point":

Turn-down ratio: Can the system operate at 30% capacity during validation or low-demand periods without causing stagnant pockets?
Campaign sizes: Expected batch masses, solvent volumes, and reaction times.
Peak vs. Average rates: Crucial for sizing header pipes and recovery systems.

1.3. Utility Battery Limit Specifications

Specify the exact temperature, pressure, and purity profile of all incoming utilities:

Chilled water supply and return temperatures (6°C supply, 12°C return).
Clean steam dryness fraction (>= 0.95) and pressure boundaries.
Compressed air dew point limits at line pressure.

2. Why Design Basis Documents Get Ignored

If the DB is so critical, why does it consistently fail to guide the engineering team?

2.1. The "Copy-Paste" Syndrome

Many engineers copy utility values and design codes from older projects without verifying local conditions. When the actual equipment arrives, the utilities (like cooling water flow or pressure) cannot sustain the cooling load, forcing late-stage cooling jacket recalculations.

2.2. The Silent Change Phenomenon

As detailed engineering progresses, piping designers change pipe runs or manufacturers modify nozzle orientations without updating the centralized Design Basis. The document ceases to be the "single source of truth."

2.3. The HAZOP Trainwreck

When the Design Basis is loose or unverified, safety margins are checked for the first time during the HAZOP study. Safety assessments reveal that relief valve capacities, thermal jackets, or venting systems are undersized under worst-case scenarios (e.g., external fire or runaway reaction). The resulting revisions require scrapping already-fabricated piping spools, delaying startup by months.

3. Real Greenfield Pharma Examples

Let’s look at two real-world examples showing how a locked Design Basis prevents failures.

Example A: The Purified Water Loop

In a greenfield injectable facility, the initial Design Basis failed to lock the minimum velocity requirement for the loop return lines. During detailed design, the piping subcontractor optimized the loop runs for material savings, using larger diameter pipes. At HAZOP, it was discovered that at low-production periods, the return line velocity dropped to 0.8 m/s—failing to maintain the turbulent Reynolds number (Re > 4000) required to inhibit biofilm growth. The loop had to be completely re-piped with smaller lines, costing over $150,000 in rework and delaying validation by six weeks.

Example B: Exothermic Reaction Emergency Venting Case

During a design review, the solvent storage venting basis was assumed to follow single-phase vapor relief. However, because the reaction solvent contained suspended active ingredient particles, it was highly prone to foaming. Because the Design Basis did not specify the physical behavior (foaming potential) and reactor volume details, the vent was sized based on standard vapor flow. During HAZOP, the team identified the risk of two-phase flashing flow. Applying the DIERS HEM Omega method showed that the required vent area was actually three times larger than designed. Because the vessel was already fabricated, a new nozzle had to be hot-tapped onto the vessel dome at the field site, incurring massive crane and validation costs.

4. Deep-Dive Design Basis: Multi-Purpose Reactor Case Study (150°C Service)

To illustrate the construction of a locked, detailed engineering Design Basis, we analyze a 2.5 m³ Multi-Purpose Chemical Batch Reactor designed to operate at temperatures up to 150°C. This case study provides the exact calculations, parameters, and design rules used to size the equipment.

       =========================================================
      |                 PROCESS DESIGN MEMO                     |
      |   Equipment Tag: R-101 (2.5 m³ Reactor System)          |
      |   Design Target: 150°C Maximum Operating Temperature    |
       =========================================================

4.1. Reactor Shell & Jacket Wall Thickness (ASME Sec VIII Div 1 Sizing)

Sizing the reactor shell and jacket wall thickness is critical to withstand internal pressure at the maximum operating temperature (150°C). The ASME Section VIII Division 1 sizing equation for cylindrical shell thickness (t) under internal pressure is:

t = (P * R) / (S * E - 0.6 * P) + CA

Where:

t = Minimum required wall thickness (mm)
P = Internal Design Pressure = 6.0 bar g = 0.6 MPa
R = Cylinder inside radius = 600 mm (Inside Diameter = 1.2 m)
S = Allowable material stress at 150°C = 115 MPa (approx. 16,700 psi for 316L SS)
E = Joint Efficiency = 1.0 (for fully radiographed seams)
CA = Corrosion Allowance = 1.5 mm

Calculation:

t = (0.6 * 600) / (115 * 1.0 - 0.6 * 0.6) + 1.5 = 360 / 114.64 + 1.5 = 3.14 + 1.5 = 4.64 mm

Design Basis Decision: Adding standard fabricator tolerance rules, the nominal shell thickness is locked at 6.0 mm.

4.2. Extended Materials of Construction (MOC) Selection Guide

Choosing the correct MOC involves assessing chemical resistance, operating temperatures, and mechanical limits. The Design Basis locks these choices across the reactor system:

Reactor Vessels (Process Wetted Contact):

MSGL (Mild Steel Glass Lined): Specified for highly acidic processes (e.g., HCl, H2SO4) at high temperatures. Offers superior corrosion immunity compared to metals, but sensitive to thermal shock (> 120°C differential limit).
Hastelloy C-276 (HC-276): Selected for high-temperature organic synthesis involving wet chlorine, reducing acids, and volatile halides where glass lining is prone to mechanical chipping.
Monel (Alloy 400): Selected for processes involving hydrofluoric acid (HF), dry fluorine, or raw seawater cooling feeds where stainless steel suffers from pitting.
316L Stainless Steel (cGMP Standard): Low-carbon grade standard for general sterile processing, crystallization, and clean API filtration. Offers good corrosion resistance and easy passivability.

Heat Exchangers & Condensers:

Titanium (Ti Gr. 2): Locked for shell-and-tube coolers using high-salinity cooling brines or seawater where austenitic steels fail due to stress corrosion cracking.
Duplex Steel (Duplex 2205 / Super Duplex 2507): Sized for heat exchangers under high mechanical loads and mild chloride contamination. Offers twice the yield strength of standard SS316 and exceptional resistance to stress corrosion cracking.
316 / 316L Stainless Steel: Used for standard utility condensers utilizing demineralized chilled water loops or clean steam headers.

4.3. Utility Lines & Velocity Sizing Limits by Application

To prevent line erosion, noise, and excessive pressure drops, velocities must be designed based on the specific fluid and application rules of thumb:

Saturated Clean Steam (Utility Heating): 15 to 25 m/s. Saturated steam requires lower velocities to prevent water droplets (condensate) from eroding valve seats and causing water hammer.
Superheated Steam: 30 to 50 m/s. Superheated steam is free of moisture droplets and can tolerate higher velocities without risk of impingement erosion.
Purified Water (PW) & WFI Loops: 1.5 to 2.1 m/s. Velocities must be kept above 1.5 m/s to maintain a turbulent Reynolds number (Re > 4000), preventing biofilm accumulation on pipe walls. Velocities are capped at 3.0 m/s to prevent long-term erosion of passive layers.
Cooling / Chilled Water Lines: 1.2 to 2.5 m/s. Higher velocities maintain high heat transfer coefficients and prevent sediment fouling, but are capped to avoid excessive pump horsepower requirements.
Nitrogen Blanketing / Purging Headers: 5 to 12 m/s. Prevents static charge buildup and high pressure drops during rapid vessel inerting.
Compressed Air Distribution: 6 to 10 m/s. Optimizes header pressure stability.
Emergency Vent & Relief Discharge Lines: 50 to 120 m/s (or Mach 0.3 to 0.5). Sized for short-duration emergency relief flows where noise and pressure drops are secondary to protecting the vessel from catastrophic rupture.

4.4. TCU Heating/Cooling System Design

For a multi-purpose reactor operating at temperatures up to 150°C, direct steam/cooling water injection is unsuitable due to thermal shock and lack of temperature control.

Thermal Control Unit (TCU): Sized as a closed-loop system utilizing a high-temperature heat transfer fluid (HTF) (e.g., silicone oil or Marlotherm) circulating through a secondary shell-and-tube utility interface.
Jacket Type: A Half-pipe jacket (limpet coil) is selected over a dimple jacket. The half-pipe design allows high-velocity circulation of the HTF, inducing turbulence and boosting the jacket-side film heat transfer coefficient (hj).

4.5. Cooling Design & Heat Transfer Area

During exotherms or cooling phases, the TCU must remove heat at a specified rate:

Batch Mass (m): 2000 kg
Specific Heat (Cp): 3.8 kJ/kg·K
Cooling Delta (delta_T): Heat removal from 150°C to 50°C (delta_T = 100 K) in 2 hours (delta_t = 7200 s).
Reaction Exotherm (Q_rxn): 150 kW peak.

Total Cooling Duty (Q_cool):

Q_sensible = (m * Cp * delta_T) / delta_t = (2000 * 3.8 * 1000 * 100) / 7200 = 105.6 kW Q_cool = Q_sensible + Q_rxn = 105.6 + 150 = 255.6 kW

Required Heat Transfer Area (A_required): Using an overall heat transfer coefficient (U) of 350 W/m²·K and a Log Mean Temperature Difference (delta_T_LMTD) of 40 K between batch and cooling fluid:

A_required = Q_cool / (U * delta_T_LMTD) = 255600 / (350 * 40) = 18.25 m²

Design Basis Decision: The reactor wetted area (22.0 m² at full capacity) is sufficient. However, at turn-down (30% volume, Aw approx. 10.5 m²), cooling water utility backup is required to handle exotherms.

4.6. Circulation Pump Capacity & NPSH Rules

The TCU pump circulating the heat transfer fluid through the reactor limpet coil must maintain a high Reynolds number to guarantee high heat transfer.

Flow Rate Criteria: Minimum velocity inside the half-pipe coil is 1.8 m/s to ensure turbulent flow (Re > 10,000). For a 3-inch half-pipe profile, this requires a pump flow capacity of 42 m³/hr.
Cavitation Control (NPSH): At 150°C, the vapor pressure of the heat transfer fluid increases. The Design Basis mandates:

NPSH_available >= NPSH_required + 1.0 m

This locks the physical elevation of the TCU pump suction flange at a minimum of 1.2 m below the reactor bottom outlet to prevent cavitation.

4.7. Heat Exchanger Design Criteria

The TCU utilizes secondary heat exchangers to transfer energy between primary utility lines (chilled water, steam) and the circulating heat transfer fluid loop:

Heat Exchanger Type: Gasketed Plate Heat Exchangers (PHE) are specified for the cooling utility due to high efficiency, while Shell and Tube heat exchangers are specified for steam utility to withstand high-pressure clean steam (6.0 bar g).
Fouling Factor (Rf): Sized with a fouling margin of 0.0002 m²·K/W for cooling water lines.
Maximum Pressure Drop (delta_P_max): <= 0.5 bar across both utility and process channels to prevent pump motor overloading.

5. How to Write a Locked Design Basis

To ensure your Design Basis becomes the project bible:

Enforce Version Control and MOC (Management of Change): No engineer should change a pipe size, heat load, or vessel volume without an approved modification to the Design Basis.
Define Boundary Conditions Clearly: Use a standard matrix mapping all process streams at battery limits.
Cross-Link to Sizing Calculators: Embed references to the exact calculation sheets (e.g., pump sizers, line sizers, emergency vent calculations) used to derive the values.
Sign-Off Milestones: Do not proceed to detailed piping layouts or equipment purchasing until the Design Basis has been formally signed off by process safety, operations, and the project manager.

Locking down these parameters early is the single most effective way to eliminate costly late-stage revisions and keep your project on schedule and on budget.
